Drug Design & Molecular Docking

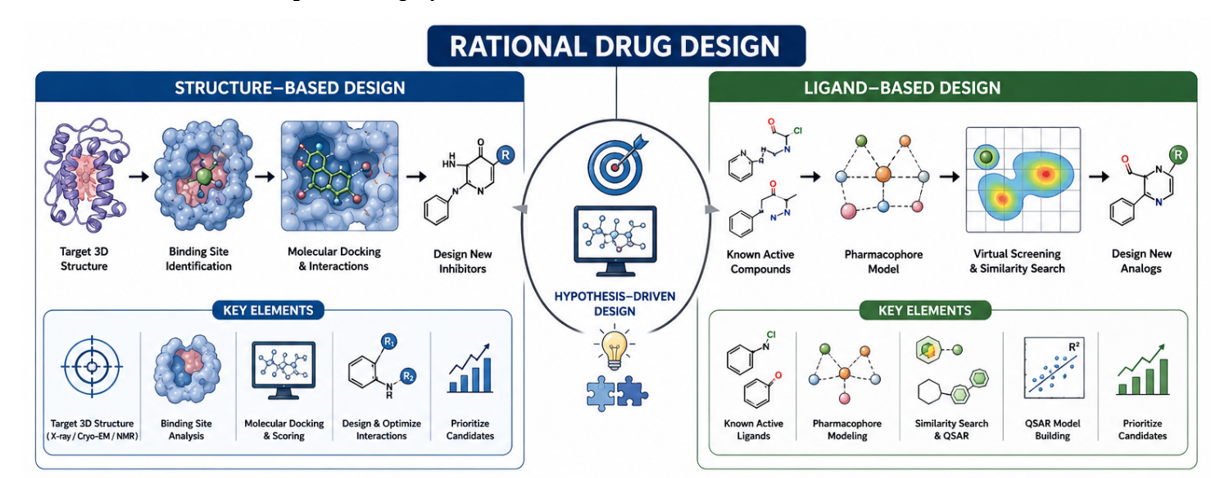

Rational drug design is the hypothesis-driven approach to compound design in which chemical structures are proposed based on a defined understanding of the target's biological function and three-dimensional structure, in direct contrast to earlier empirical or random-screening approaches to drug discovery. Rational design typically follows one of two complementary strategies depending on the information available: structure-based design, applied when a resolved three-dimensional structure of the target is available, and ligand-based design, applied when only the structures of known active compounds, rather than the target itself, are available. The unifying principle of rational design is that a specific, testable structural hypothesis — rather than an empirical screening outcome alone — guides each design decision, allowing medicinal chemists to propose chemically reasoned modifications rather than proceeding by trial and error.

Structure-based drug design uses the experimentally determined or computationally predicted three-dimensional structure of a target protein, typically obtained by X-ray crystallography, nuclear magnetic resonance spectroscopy, or cryo-electron microscopy, to guide the design of molecules that will physically complement the target's binding site in shape, electrostatics, and hydrogen-bonding pattern. SBDD workflows typically integrate molecular docking (predicting how a candidate ligand binds within the target site), structure-based virtual screening (computationally ranking large compound libraries by predicted binding), and iterative structural refinement guided by newly solved co-crystal structures of the evolving lead series bound to the target, allowing each round of chemical modification to be directly rationalised against an accurate structural model rather than inferred indirectly.

Structure-Based Drug Design (SBDD) Workflow

Ligand-based drug design is applied when the three-dimensional structure of the target is unavailable or unreliable, and instead derives design hypotheses from the structures and biological activities of a set of known active compounds. Core LBDD methods include pharmacophore modelling, which identifies the common three-dimensional arrangement of chemical features (hydrogen-bond donors and acceptors, hydrophobic centres, and charged groups) shared by known active compounds; quantitative structure–activity relationship (QSAR) modelling, which statistically correlates measurable molecular descriptors with biological activity to build a predictive mathematical model; and molecular similarity searching, which identifies novel candidate compounds structurally or topologically similar to known actives. LBDD is particularly valuable for target classes, such as many G-protein-coupled receptors, for which high-resolution structural data has historically been difficult to obtain.

Ligand-Based Drug Design (LBDD) Workflow

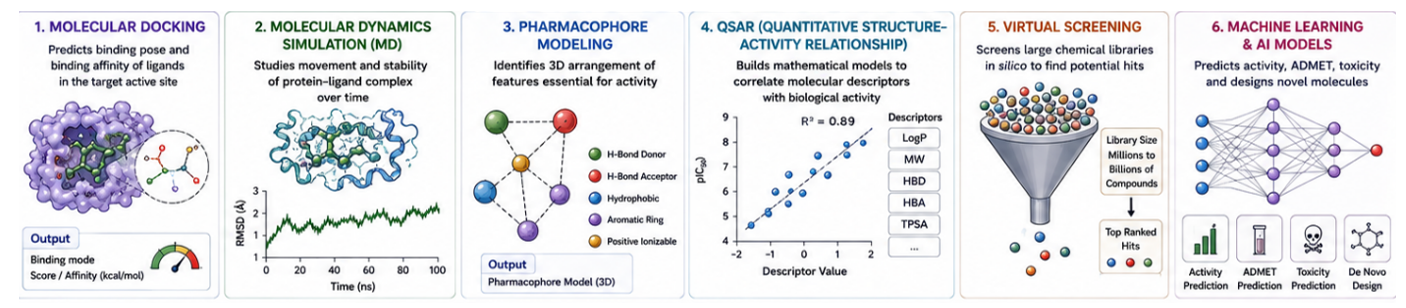

Computer-Aided Drug Design encompasses the full suite of computational methods — molecular docking, molecular dynamics simulation, pharmacophore modelling, QSAR, virtual screening, and, increasingly, machine-learning-based prediction — applied throughout the drug discovery pipeline to prioritise, design, and evaluate candidate compounds before committing to the expense of chemical synthesis and biological testing. CADD has become progressively more central to pharmaceutical discovery practice as computational power and the availability of high-quality structural and bioactivity data have increased, allowing a research programme to evaluate millions of virtual compounds computationally in the time it would take to physically synthesise and test only a handful, substantially improving the efficiency and hit rate of modern discovery programmes.

The first practical step of any structure-based design or docking exercise is retrieval of an appropriate three-dimensional target structure, most commonly obtained from the Protein Data Bank (PDB), the internationally curated public repository of experimentally determined macromolecular structures. Structure selection requires careful evaluation of resolution (with structures below approximately 2.5 Å generally considered suitable for docking studies), the presence of a co-crystallised ligand occupying the binding site of interest (which both confirms the biologically relevant site and provides a valuable positive-control pose for docking validation), and the completeness of the modelled structure, since crystallographic structures frequently contain unresolved loop regions that must be addressed during subsequent protein preparation. Where no experimental structure is available for a target of interest, homology modelling — constructing a three-dimensional model based on a related protein of known structure — or, increasingly, deep-learning-based structure prediction tools such as AlphaFold, provide viable alternative sources of a starting structural model.

Protein preparation converts a raw, as-deposited PDB structure into a chemically and geometrically valid model suitable for docking calculations, correcting the numerous artefacts and omissions inherent to experimental structure determination. This preparation process removes crystallographic water molecules (except where a specific structural water is known to mediate ligand binding and is therefore deliberately retained), adds hydrogen atoms that are not resolved by X-ray diffraction, assigns appropriate protonation states to ionisable residues at physiological pH, resolves side-chain and loop conformational ambiguities, and performs a restrained energy minimisation to relieve unfavourable steric clashes introduced during hydrogen addition, all without significantly perturbing the experimentally determined heavy-atom backbone conformation.

Active site identification defines the specific three-dimensional region of the target protein within which docking calculations will be performed, most reliably established from the location of a co-crystallised ligand or substrate in an experimental structure. Where no bound ligand is available, computational binding-site prediction algorithms identify candidate pockets on the basis of surface geometry (searching for concave, enclosed cavities of appropriate volume) or evolutionary conservation (favouring pockets lined by residues conserved across orthologous proteins, consistent with functional importance), and the identified site is subsequently validated against any available site-directed mutagenesis or pharmacological data implicating specific residues in ligand or substrate binding.

Grid box generation defines the three-dimensional spatial region within which the docking search algorithm will explore candidate ligand poses, centred on the identified active site and sized to fully encompass the binding pocket together with a modest surrounding margin sufficient to accommodate reasonable ligand flexibility and positional uncertainty. An excessively small grid box risks excluding legitimate binding poses that extend beyond the defined boundary, while an excessively large grid box unnecessarily increases computational search time and can reduce docking accuracy by permitting non-physiological poses outside the true binding site; grid box dimensions are therefore typically validated by confirming that a redocking calculation successfully reproduces the pose of any known co-crystallised ligand within an acceptable positional deviation.

Ligand preparation converts the two-dimensional chemical structure of each candidate compound into an energetically reasonable, correctly protonated, and stereochemically defined three-dimensional model suitable for docking. This process generates appropriate tautomeric and protonation states at physiological pH, enumerates stereoisomers where stereochemistry is not explicitly defined in the input structure, assigns partial atomic charges required by the docking scoring function, and performs an initial energy minimisation to remove unfavourable internal steric strain, ensuring that each ligand entering the docking calculation represents a chemically realistic starting conformation rather than an arbitrary two-dimensional projection.

Introduction and Principle

Molecular docking is a computational technique that predicts the preferred binding orientation, or pose, of a small molecule within the binding site of a target macromolecule, and estimates the strength of the resulting interaction through a mathematical scoring function. The technique rests on the principle that biological recognition between a ligand and its target is governed by geometric and chemical complementarity — favourable shape fit, hydrogen bonding, hydrophobic contact, and electrostatic interaction between the two binding partners — and that this complementarity can be approximated computationally with sufficient accuracy to meaningfully rank and prioritise candidate compounds ahead of experimental testing.

Mechanism and Methodology

A docking calculation proceeds through two conceptually distinct computational stages. A search algorithm — commonly a genetic algorithm, as employed by AutoDock and AutoDock Vina, or a systematic incremental construction algorithm, as employed by Glide — explores the very large conformational and positional space available to a flexible ligand within the defined grid box, generating a large number of candidate binding poses. A scoring function then estimates the relative binding affinity of each generated pose, typically through an empirically or physics-based weighted combination of van der Waals interaction energy, electrostatic interaction energy, hydrogen-bonding geometry, and a penalty term for the entropic cost of restricting ligand conformational freedom upon binding, and ranks poses accordingly, with the top-scoring pose taken as the predicted binding mode.

Applications

Molecular docking is applied throughout structure-based drug design: in virtual screening, to rank very large virtual compound libraries and prioritise the small subset most likely to show genuine biological activity; in lead optimization, to rationalise the structure–activity relationship of an evolving chemical series by proposing a consistent binding hypothesis; and in mechanism elucidation, to generate a testable hypothesis for the binding mode of a compound whose experimental co-crystal structure has not yet been solved.

Advantages and Limitations

Docking's principal advantage is its computational speed, permitting the evaluation of many thousands to millions of compounds within a practical timeframe, several orders of magnitude faster than any experimental screening approach. Its principal limitation is the imperfect accuracy of current scoring functions, which are known to correlate imperfectly with true experimental binding affinity, particularly across structurally diverse compound sets; docking is therefore conventionally treated as a hypothesis-generating, hit-prioritisation tool rather than a definitive, standalone predictor of binding affinity, with top-ranked virtual hits always subject to experimental confirmation.

The sequential docking workflow — target retrieval, protein preparation, active site definition, grid box generation, ligand preparation, and finally the docking calculation itself — is structured so that each preceding step removes a specific source of error or ambiguity before the computationally expensive search and scoring stage is performed. Skipping or performing any preparatory step carelessly (for example, docking against an unprepared structure still containing crystallographic artefacts, or against an incorrectly defined active site) propagates error directly into the final predicted poses and scores, regardless of how sophisticated the docking algorithm itself may be; the scientific and industrial value of a docking campaign therefore depends as much on the rigour of its preparatory steps as on the docking calculation itself. From a research-translation perspective, a well-validated docking workflow — one that successfully reproduces a known co-crystallised ligand pose during redocking validation — provides considerably greater confidence that its predictions for novel compounds will translate into genuine experimental activity.

AutoDock Vina, a widely used open-source docking program, employs an empirical scoring function combined with an efficient gradient-based local search algorithm, offering a favourable balance of speed and accuracy for academic and exploratory research use; critical user-defined parameters include the grid box centre and dimensions, the number of independent docking runs (exhaustiveness) performed per ligand, and the number of top-ranked poses retained for analysis. Glide, a commercial docking program within the Schrödinger Maestro software suite, offers a graduated series of precision modes — high-throughput virtual screening (HTVS), standard precision (SP), and extra precision (XP) — that trade computational speed against pose-prediction accuracy, allowing very large compound libraries to be triaged rapidly at lower precision before the most promising subset is re-evaluated at higher precision. Both programs require the properly prepared protein and ligand structures described above as direct inputs, and both provide a numerical docking score, conventionally expressed in kilocalories per mole, as their primary quantitative output.

Common practical challenges in docking studies include inadequate treatment of protein flexibility (since most standard docking protocols treat the target as rigid, potentially missing binding modes that require induced-fit conformational adjustment), inaccurate handling of ordered water molecules that mediate ligand binding, and the fundamental limitation of scoring function accuracy discussed above. Validation of a docking protocol is conventionally performed through redocking, in which a co-crystallised ligand is computationally removed from its experimental structure and then re-docked into the same site, with a resulting pose within approximately 2.0 Å root-mean-square deviation (RMSD) of the original experimental position generally taken as confirming that the docking protocol is capable of accurately reproducing genuine binding geometry for that particular target.

The numerical docking score generated by a docking calculation provides a relative, rather than absolute, estimate of predicted binding affinity, and should always be interpreted comparatively — ranking candidate compounds against one another and against a known active reference compound docked using the identical protocol — rather than as a standalone, quantitatively precise prediction of true binding free energy. A more negative (or, depending on software convention, more positive) score indicates a more favourable predicted interaction, but because absolute docking scores are not reliably transferable between different targets or different docking programs, meaningful interpretation requires a consistent internal benchmark, most commonly the docking score obtained for a well-characterised reference ligand against the same target using the identical protocol.

Root-mean-square deviation quantifies the average positional difference, typically measured in Ångströms, between two superimposed sets of atomic coordinates, and serves two distinct but related purposes within structure-based drug design. In docking validation, RMSD measures the deviation between a computationally predicted ligand pose and the experimentally determined (co-crystallised) pose of the same ligand, with values below approximately 2.0 Å conventionally regarded as indicating a successful, near-native pose prediction. In molecular dynamics simulation, RMSD is tracked continuously over the simulation trajectory relative to the starting structure, providing a direct measure of overall structural stability, with a plateauing RMSD trace after an initial equilibration period taken as evidence that the simulated system has reached a stable conformational state.

Binding (or free) energy quantifies the thermodynamic favourability of the interaction between a ligand and its target, and can be estimated computationally at several levels of increasing accuracy and computational cost. Docking scoring functions provide the fastest, but least accurate, binding energy estimate, suitable for rapid ranking of very large compound sets. More rigorous post-docking methods, including the Molecular Mechanics/Poisson-Boltzmann or Generalised Born Surface Area (MM-PBSA/MM-GBSA) approaches, re-evaluate binding energy using a more complete physics-based energy model applied to snapshots extracted from a molecular dynamics trajectory, offering improved accuracy at substantially greater computational expense, and are typically reserved for the final ranking of a small, already-prioritised set of top candidate compounds rather than for primary virtual screening.

The predicted binding pose generated by a docking calculation is conventionally analysed in terms of the specific non-covalent interactions formed between ligand and target, since these individual interactions provide the chemically interpretable rationale that guides subsequent medicinal chemistry design. Hydrogen bonds, formed between a donor (typically an N–H or O–H group) and an acceptor (typically a carbonyl oxygen or a basic nitrogen) at an appropriate distance and geometry, are frequently the strongest and most specificity-conferring interactions within a binding site, and their presence or absence in a predicted pose is closely scrutinised. Hydrophobic interactions, arising from the favourable burial of non-polar molecular surface within a non-polar binding pocket region, contribute substantially to overall binding affinity, particularly for larger, more lipophilic binding sites. Electrostatic interactions, including both formal salt bridges between oppositely charged groups and weaker dipole–dipole interactions, contribute additional binding specificity and are of particular importance for targets bearing a charged catalytic or binding residue. A chemically coherent, well-validated docking pose should typically demonstrate a plausible combination of all three interaction types consistent with the physicochemical character of the binding site.

A pharmacophore is the abstract, three-dimensional arrangement of chemical features — hydrogen-bond donors and acceptors, hydrophobic centres, aromatic ring centroids, and positively or negatively ionisable groups — that is necessary and sufficient for a molecule to interact productively with a specific biological target, independent of any particular chemical scaffold that presents that arrangement. Pharmacophore models may be derived directly from a structure-based analysis of a target's binding site (structure-based pharmacophore) or, in the absence of target structural data, from the common three-dimensional features shared by a training set of known active compounds (ligand-based pharmacophore); once established, a pharmacophore model can be used to rapidly screen very large virtual compound databases for molecules capable of presenting the required feature arrangement, offering a computationally efficient complement to full molecular docking, particularly valuable for scaffold-hopping applications in which chemically novel structures satisfying the same essential pharmacophore are specifically sought.

Virtual screening is the systematic computational evaluation of large compound libraries — commonly ranging from hundreds of thousands to tens of millions of virtual structures — to identify the small subset most likely to show genuine biological activity against a target of interest, using molecular docking, pharmacophore matching, or machine-learning-based scoring, individually or in combination. A typical virtual screening campaign applies a cascade of progressively more computationally intensive and more accurate filters: an initial, rapid physicochemical and drug-likeness filter (commonly incorporating Lipinski's Rule of Five criteria) removes obviously unsuitable compounds; a fast pharmacophore or low-precision docking filter narrows the library further; and a final high-precision docking or free-energy calculation is applied only to the small, already-prioritised subset of top-ranked candidates, which are then submitted for experimental testing. This cascaded approach allows the enormous chemical space represented by modern virtual compound libraries to be searched efficiently within a practical computational budget.

Molecular dynamics simulation computes the time-dependent physical motion of every atom within a molecular system — typically a ligand-protein complex, solvated in explicit water molecules — by numerically integrating Newton's equations of motion under a defined force field describing the interatomic forces, generating a trajectory that reveals how the system's structure evolves over a simulated timescale ranging from nanoseconds to microseconds. In structure-based drug design, molecular dynamics serves several complementary purposes: validating the stability of a docking-predicted binding pose over time (a pose that remains stable throughout an extended simulation is considered a more credible binding hypothesis than one that rapidly dissociates), capturing protein flexibility and induced-fit conformational adjustment that static docking cannot address, and providing the trajectory data required for the more rigorous MM-PBSA/MM-GBSA binding energy calculations described above.

Computational ADMET prediction applies in-silico models — ranging from simple rule-based filters such as Lipinski's Rule of Five to sophisticated machine-learning models trained on large curated pharmacokinetic datasets — to estimate the likely absorption, distribution, metabolism, excretion, and toxicity behaviour of a virtual compound directly from its two-dimensional chemical structure, before any physical synthesis is undertaken. Widely used platforms include SwissADME, pkCSM, and ADMETlab, alongside commercial packages such as Schrödinger's QikProp, and these tools are typically applied as an additional filtering layer within the virtual screening cascade described above, ensuring that compounds prioritised purely on predicted target potency are simultaneously screened for obvious pharmacokinetic or toxicological liability, such as poor predicted oral absorption or hERG channel-mediated cardiotoxicity risk.

Artificial intelligence and machine learning are increasingly transforming every stage of the computational drug design workflow described in this phase, with deep-learning models now applied to protein structure prediction (most notably AlphaFold, which has resolved the structure-prediction bottleneck for numerous previously intractable targets), de-novo molecule generation, and binding affinity prediction with accuracy in some cases approaching that of physics-based free-energy methods at a fraction of the computational cost. Quantitative structure–activity relationship (QSAR) modelling extends the ligand-based design principles described above into a fully statistical framework, correlating molecular descriptors with measured biological activity to build predictive models capable of prospectively ranking untested compounds. Fragment-based drug design begins not from a drug-sized molecule but from very small, low-molecular-weight fragments (typically below 300 Da) that bind weakly but with high efficiency per atom, subsequently elaborated or linked together into a larger, higher-affinity lead compound; de-novo drug design instead computationally generates entirely novel molecular structures, atom by atom or fragment by fragment, directly optimised against a defined target binding site or pharmacophore, increasingly guided by generative artificial intelligence models. PROTAC (Proteolysis-Targeting Chimera) technology represents a fundamentally distinct design paradigm in which a bifunctional molecule simultaneously engages a target protein and an E3 ubiquitin ligase, recruiting the cell's own protein degradation machinery to eliminate the target entirely rather than merely inhibiting its activity, offering a route to targets historically considered undruggable by conventional occupancy-based inhibition. Covalent drug design deliberately incorporates a reactive electrophilic group designed to form an irreversible or slowly reversible covalent bond with a specific nucleophilic residue (commonly a cysteine) within the target binding site, offering the potential for sustained target engagement and improved selectivity when carefully designed, though requiring careful management of off-target reactivity risk. Cryo-electron microscopy has increasingly supplemented X-ray crystallography as a source of high-resolution structural data for structure-based design, particularly for large, flexible, or membrane-embedded targets historically resistant to crystallisation. Multi-target drug design deliberately pursues a single molecule capable of modulating more than one biological target simultaneously, motivated by the recognition that many complex diseases, including cancer and neurodegenerative disorders, arise from dysregulation of multiple interacting pathways rather than a single molecular defect.

Is a favourable docking score sufficient evidence to proceed directly to compound synthesis?

No — docking scores are best treated as a prioritisation tool for ranking a large virtual library, not as a definitive affinity prediction; experimental confirmation through the biological assays described elsewhere in this text remains essential before committing significant synthetic resources to any individual computational hit.

Why does molecular dynamics simulation matter if docking already predicts a binding pose?

Standard docking protocols treat the target protein as largely rigid, which can miss binding modes that require conformational adjustment (induced fit); molecular dynamics captures this flexibility and additionally tests whether a docking-predicted pose remains stable over a physically realistic timescale, providing an important additional layer of validation.

1. Differentiate structure-based and ligand-based drug design, giving an example scenario for each.
2. What is the purpose of protein preparation before a docking calculation, and what specific corrections does it apply?
3. Explain why docking scores from two different target proteins cannot be directly compared.
4. What does an RMSD below 2.0 Å indicate in a docking redocking validation exercise?
5. Describe the difference between fragment-based and de-novo drug design.
6. Explain the mechanism by which a PROTAC molecule eliminates its target protein.

A frequent methodological error is proceeding directly to a large-scale virtual screening campaign without first validating the docking protocol through a redocking exercise against a known co-crystallised ligand, risking a systematic and undetected error in grid box placement or scoring function behaviour that silently corrupts every subsequent result. Where a docking calculation consistently fails to reproduce a known active compound's expected binding pose, re-examining the protein preparation step — particularly protonation state assignment and the treatment of any structurally important water molecule — is usually more productive than adjusting docking algorithm parameters alone. Over-reliance on a single docking program's score as the sole compound-selection criterion, without considering interaction-pattern plausibility, predicted ADMET properties, and synthetic accessibility, is a common cause of costly downstream synthesis of compounds that ultimately show poor experimental correlation with their computational ranking.
